Migrating to a G4 Enterprise

The following sections describe how to perform a migration to G4:

Before You Start the Migration

Familiarize yourself with the following information before beginning the migration.

Stage G4 Appliances

For each production appliance in your enterprise, stage a corresponding G4 appliance and add it to the network using the sections below that match your platform. If you are migrating a hybrid (on premises and on Azure) G3 enterprise to a hybrid G4 enterprise, then you stage some G4 appliances using one set of sections below and other G4 appliances using the Azure section below.

NOTE:

Take note of each production appliance's IP address and the corresponding IP address of the staged G4 appliances. If you are migrating to G4 on Azure, or if you are migrating a hybrid G3 enterprise to a hybrid G4 enterprise, also note each production appliance’s host name. Importing the current enterprise into the new enterprise requires this information.

The first two G4 appliances you create will be database appliances. Thereafter, all appliances you create will be service appliances. A G4 enterprise typically has at most the enforced maximum of two database appliances and the recommended maximum of four service-only appliances (not including the database appliances that can also act as service appliances).

It is best to place service appliances in the same data center as a database appliance to reduce the time needed for the service appliances to service requests from endpoint agents.

If any firewalls exist between your G4 appliances, then either before or immediately after staging your G4 appliances, you must open specific ports on those firewalls to allow communication between the appliances.

For more information, see "Communication Ports" in the Imprivata Online Help.

NOTE:
  • G4 database appliances require some additional firewall ports to be opened that were not required to be opened for G3 or G2 appliances:

    • They are ports 7809, and 7819 through 7899. They use TCP protocol for two-way communication. These ports are used only for communication between database appliances and are secured using encryption. For more information, see "Communication Ports" in the Imprivata Online Help.

  • Ensure that the following ICMP (Internet Control Message Protocol) control message types are not blocked. Note that these are not TCP or UDP ports:

    ICMP Control Message Type Protocol Description Use by Imprivata Appliances

    ICMP Type 0

    ICMP

    Echo Reply

    These allow ping tests to occur between appliances to test for the presence of a remote appliance.
    ICMP Type 8 ICMP Echo Request
    ICMP Type 42 ICMP Extended Echo Request
    ICMP Type 43 ICMP Extended Echo Reply

Having an odd number of appliances in a G4 enterprise is recommended only when migrating from a G3 or G2 enterprise that also has an odd number of appliances. Migrations require the same number of appliances in your G4 enterprise as in your G3 or G2 enterprise, to support the enterprise export from G3 or G2 and import into G4.

After a migration with an odd number of appliances, after you transition your G4 enterprise to production, Imprivata recommends that you transition to a standard deployment configuration.

For details about standard configurations of two, four, and six appliance enterprises, including CPU count and RAM size options per appliance, see "Appliance System Requirements and Guidance" in the Imprivata Online Help.

Export the Current Enterprise

The following sections detail how to export your current production or test enterprise.

Archiving and deleting audit records decreases the size of the Imprivata database. Decreasing the size of the database reduces the amount of time it takes to:

  • Create the new G4 enterprise using an enterprise export file.

  • Restore a backup, taken from your current enterprise, to the new G4 enterprise.

Create and Test the New G4 Enterprise

The following sections detail how to create the new G4 enterprise using an export file.

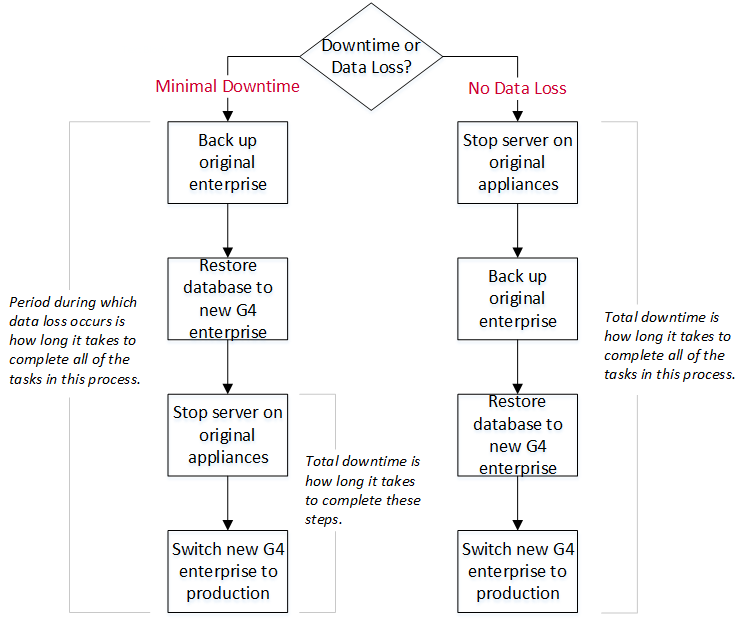

Transition the New G4 Enterprise to Production

The following sections detail how to transition your original enterprise to the new G4 enterprise.

Next Steps and Best Practices

After your Imprivata enterprise migration is complete, perform the following tasks:
